Product Details
＋
DESCRIPTION:
COMPLETE CONTROL FOR MID-SIZED AND SMALL SCALE PRODUCTIONS ON SITE AND ON LOCATION.

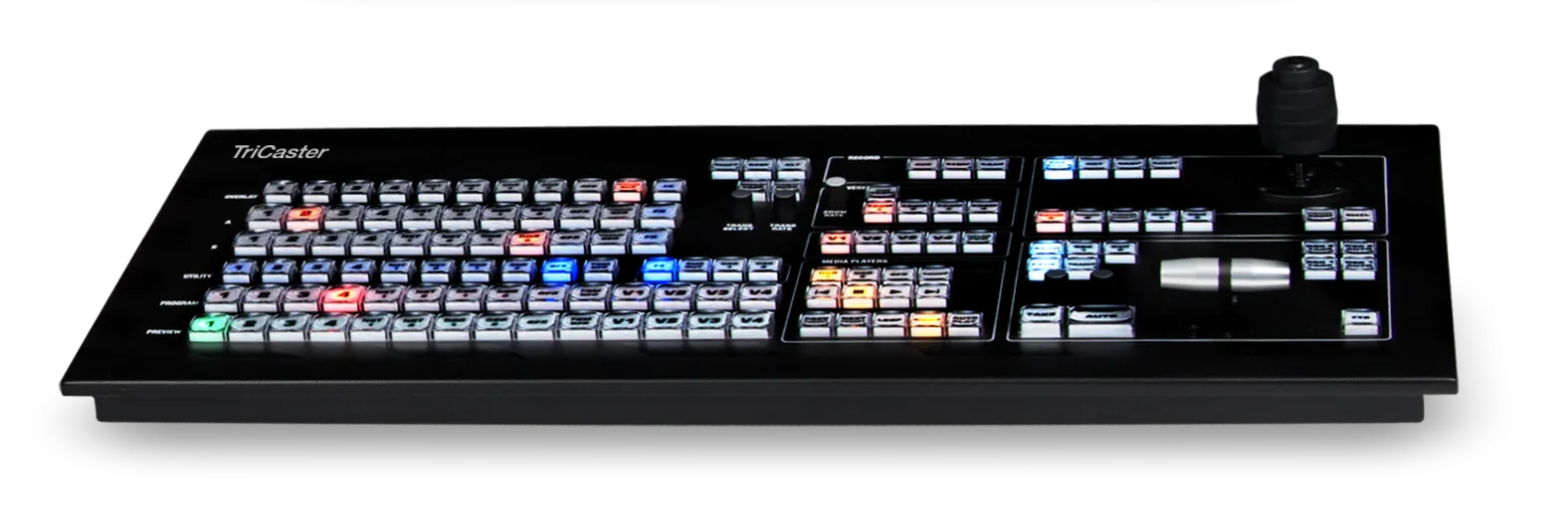

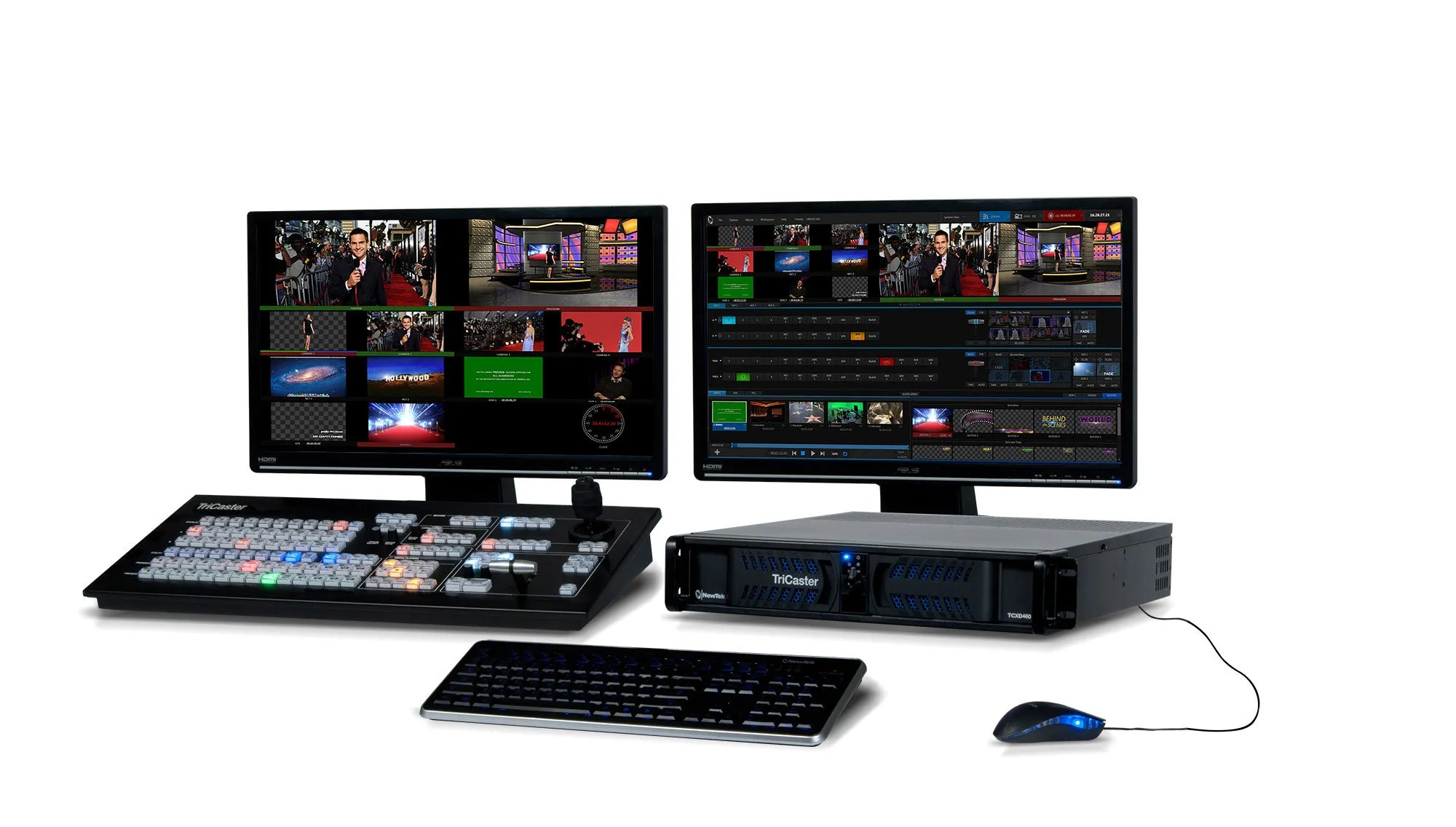

The perfect fit for mobile productions or tight spaces, the TriCaster 460 CS allows you to maintain a small production footprint without sacrificing manual control—whether you work with TriCaster 460, TriCaster 410 or TriCaster Mini.
FEATURES:
- Compact frame and intuitive layout ideal for use with TriCaster 460, TriCaster 410 and TriCaster Mini
- Illuminated buttons for heightened visibility of control surface activity
- Premium T-Bar and three-axis joystick for precision control of effects
- Synchronized control of multiple production elements with versatile, multi-select delegate controls
- Durable, ergonomic design for confident, comfortable performance
SPECIFICATIONS:
Dimensions
- Surface ~ 23.5 x 0.5 x 11.6 in (59.7 x 1.3 x 29.5 cm)
- Base ~ 22.5 x 2.0 x 10.8 in (57.2 x 5.1 x 27.4 cm)
Switcher Channels
- 16 – 6 external, 6 internal, 4 M/E buses
Video Input
- 4 simultaneous live video sources via SDI, in any combination of supported resolutions and frame rates
- Per-input format configuration, scaler (including 3:2 intelligent pull-down) and frame synchronizer enabling intermixing of formats
- Per-input color correction, crop and LiveMatte™ keyer controls
- Support for Key Fill input pairing
Network Sources
- 2 live inputs via Gigabit connection, selectable from any available network sources with support for video, audio and alpha channel
- Supported sources include
- devices and applications
- networked computers via iVGA™
- USB video sources
- video over IP sources
- RTMP and RTSP streams
- HTTP streaming video sources
- video and CG sources from compatible third-party partner solutions
- NDI™-compatible and AirSend™-compatible systems
INCLUDED:
- (1) TriCaster 460 Control Surface
