Details

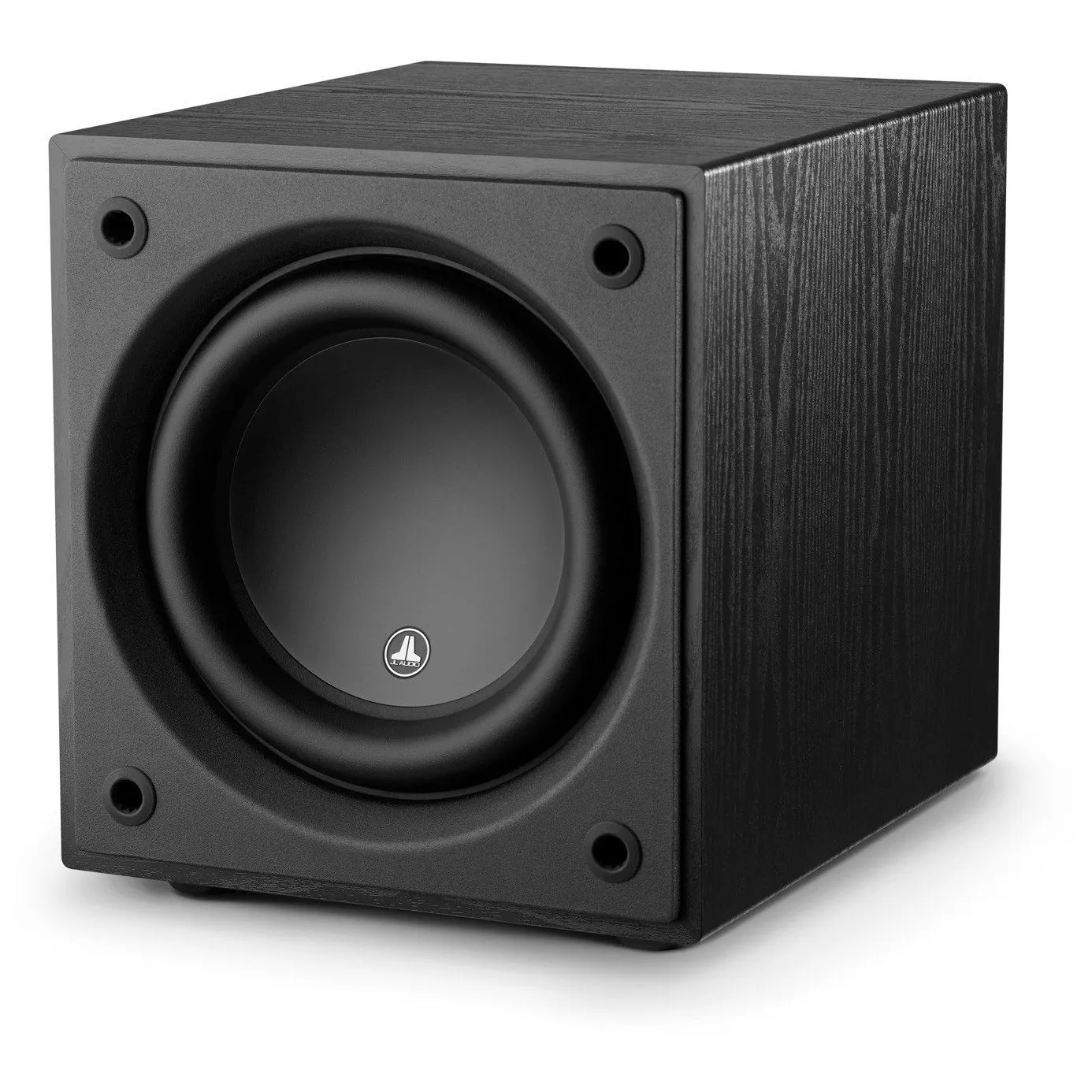

Powered Subwoofer in Black Ash
Born from JL Audio’s vast collection of advanced technologies, Dominion® powered subwoofers combine a state-of-the-art Subwoofer and an advanced Class D amplifier to deliver unmatched performance and value for a wide variety of compact applications.
Purpose-built to reproduce powerful low-frequency events with stunning impact and precision, the Dominion® driver employs JL Audio’s exclusive DMA (Dynamic Motor Analysis) technology to produce higher output levels with reduced distortion, as well as improved dynamic tracking and resolution. As a result, Dominion® subwoofers are capable of peak-to-peak excursions well in excess of 2.5-inches (63 mm - d108), and 2.7 inches (68 mm – d110), without distress or audible distortion.
Dominion® amplifiers utilize an advanced Class D design in order to extract the most from the long-excursion driver platform. This design features a tightly regulated switching power supply, allowing the amplifier to generate prodigious amounts of unclipped output voltages. These technologies ensure that the Dominion® powered subwoofers remain in their comfort zone, which is well beyond the point where most small subwoofers run out of power or driver capability.
With a host of signal processing features included, Dominion® powered subwoofers can be integrated into most systems with ease. Low-pass signals are precisely guided, thanks to the onboard crossover’s 24 dB/octave Linkwitz-Riley alignment. Phase and polarity controls are onboard to aid in achieving the optimal acoustic transition between the subwoofer(s) and main speakers. Flexible input options are on-hand to accept either line-level or speaker-level signals. Connect a JLINK™ TRX system (sold separately) to the onboard Wireless Link port and enjoy the freedom to position your Dominion® almost anywhere, up to 100 feet (30 meters) away from your source unit.
To contain the immense pressures created by the Dominion® driver, each beautiful cabinet is carefully engineered and constructed using solid, CNC-cut, MDF material with extensive internal bracing and advanced assembly techniques. All Dominion® powered subwoofers are built with pride and precision in JL Audio’s U.S. factory to deliver years of listening enjoyment.
Specifications
Enclosure Type: Sealed
Enclosure Finish: Black Ash
Frequency Response: (Anechoic) 27 - 111 Hz (±1.5dB)
-3 dB at 25 Hz / 118 Hz
-10 dB at 21 Hz / 143 Hz
Effective Piston Area (Sd): 48.71 sq in / 0.0314 sq m
Effective Displacement: 127 cu in / 2.08 L
Amplifier Power: 750 W RMS short-term
Power Mode: Automatic (Signal-Sensing)
Light Modes: N/A
Width (W): 12 in / 305 mm
Height (H): 13.4 in / 340 mm
Depth (D): 15.86 in / 403 mm
Net Weight: 38.2 lb / 17.3 kg
Note: Height dimensions include feet. Depth dimensions include grilles.
Reviews
It impressed me enough to make it my go-to recommendation for those who have concerns about space and aesthetics. If that’s you, be sure to put the d110 at the top of your audition list. While a pair of these were definitely preferred for my copious listening space, more average rooms would likely have no problem being similarly energized by a single d110. Of course, two of them would sound even better and be a lot more fun.
During my listening time with the Dominion stereo pair I never heard any signs of them running outside of their comfort zone, and the pair was easily able to propagate a 20.7Hz tone in my room. For my multi-purpose living-room system, the combination of two Dominion d110s and CR-1 proved to be just the thing to help the system go from extremely good to arrestingly excellent. They could do the same thing for you.
