Product Details
＋

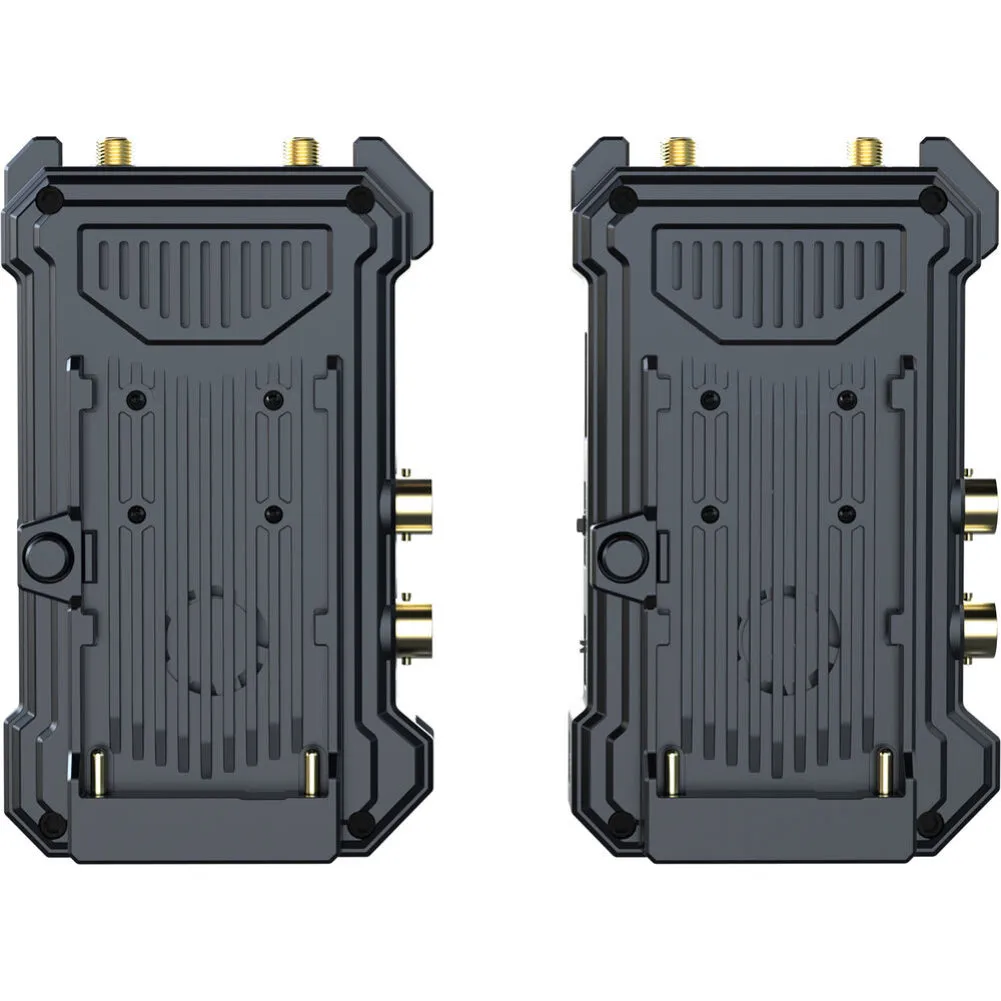

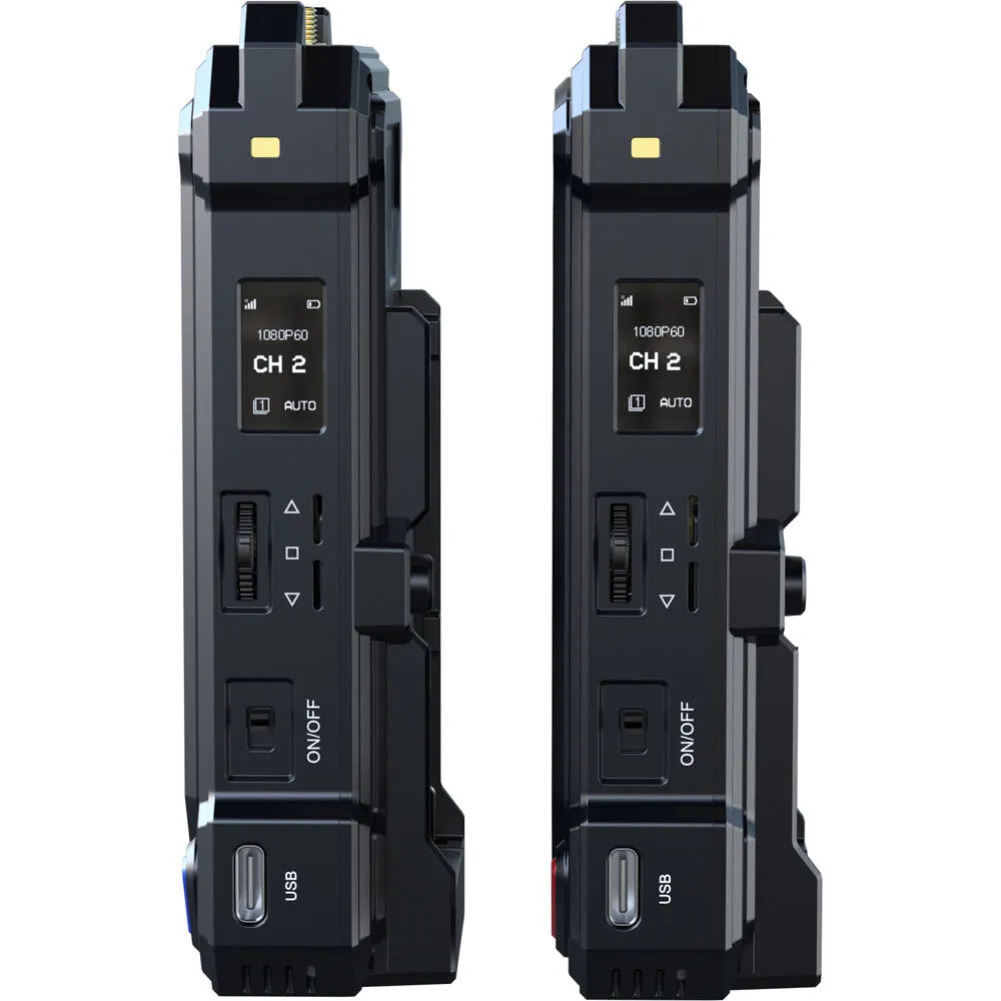

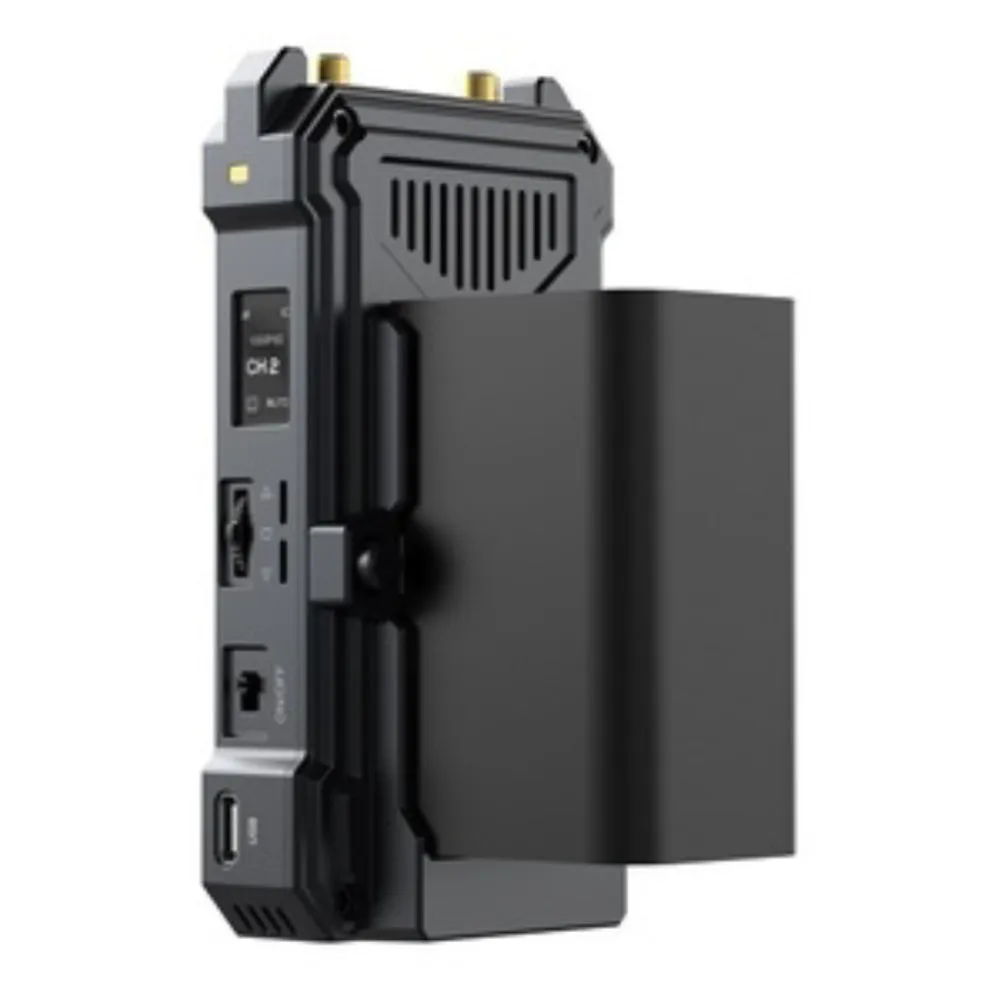

COSMO C1 utilises the latest coding and decoding technology, along with 5G wireless transmission technology, to achieve ultra-low latency wireless video transmission. It has a transmission range of over 1,000ft with a clear line of sight (LOS) when the transmitter is connected to one receiver. Both the transmitter and receiver are equipped with L-series battery plates and can also be powered via USB Type-C port and DC power input.
Specifications
- As low as 40ms Transmission Latency 2.1000ft Wireless Transmission Range (LOS) 3.Supports Smart Channel Selection
- Transmitter Supports SDI Input, HDMI Input, and SDI Loopout.
- Receiver Supports 2xSDI Outputs and HDMI output
- Supports DC Power Supply, Battery, and USB Type-C Power Supply
- Supports UVC Pull-streaming
| Wireless Range | 1,000ft or 300m (Line-of-Sight) |
| Channel Bandwidth | 20 MHz |
| Frequency Range | 5.1~5.8GHz |
| Latency | As low as 0.04s |
| RF Power | ≤ 22 dBm |
| RF Sensitivity | -80 dBm |
|
Transmitter Antenna Ports
|
2 x RP-SMA Male |
| Receiver Antenna Ports | 2 x RP-SMA Male |

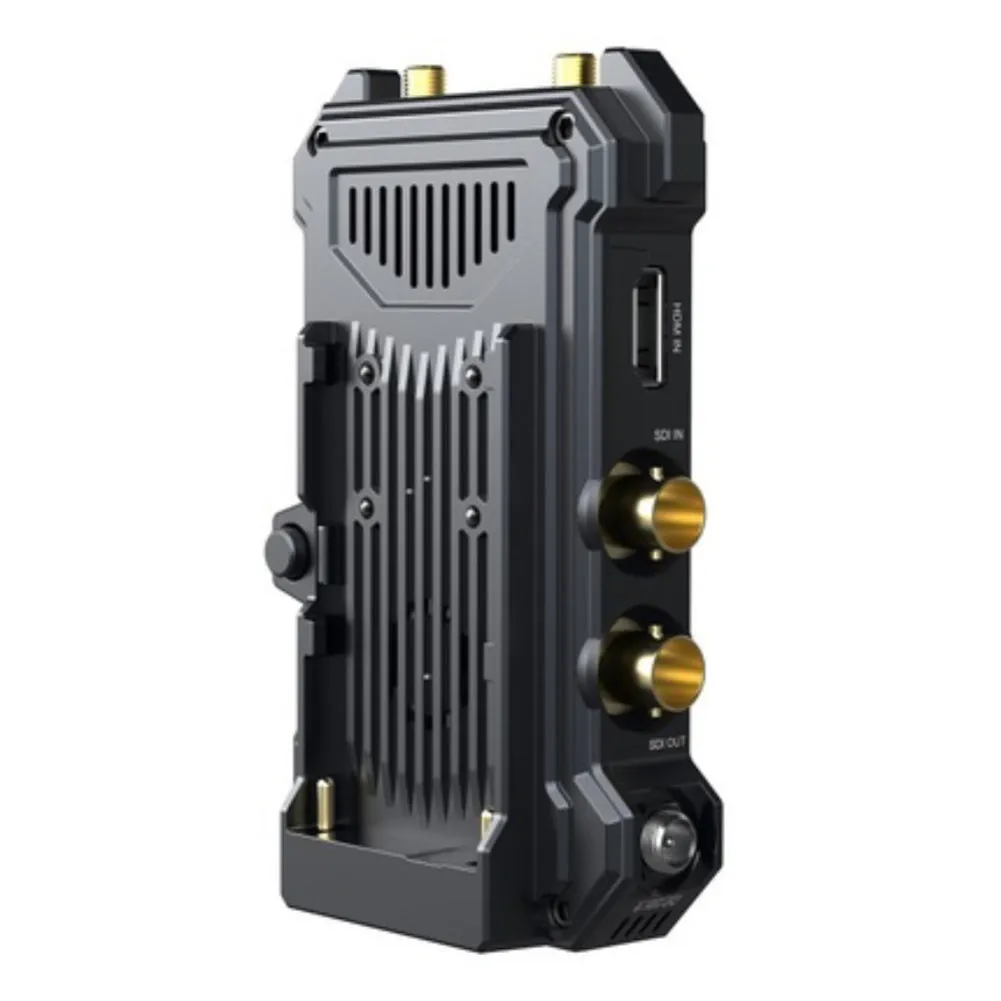

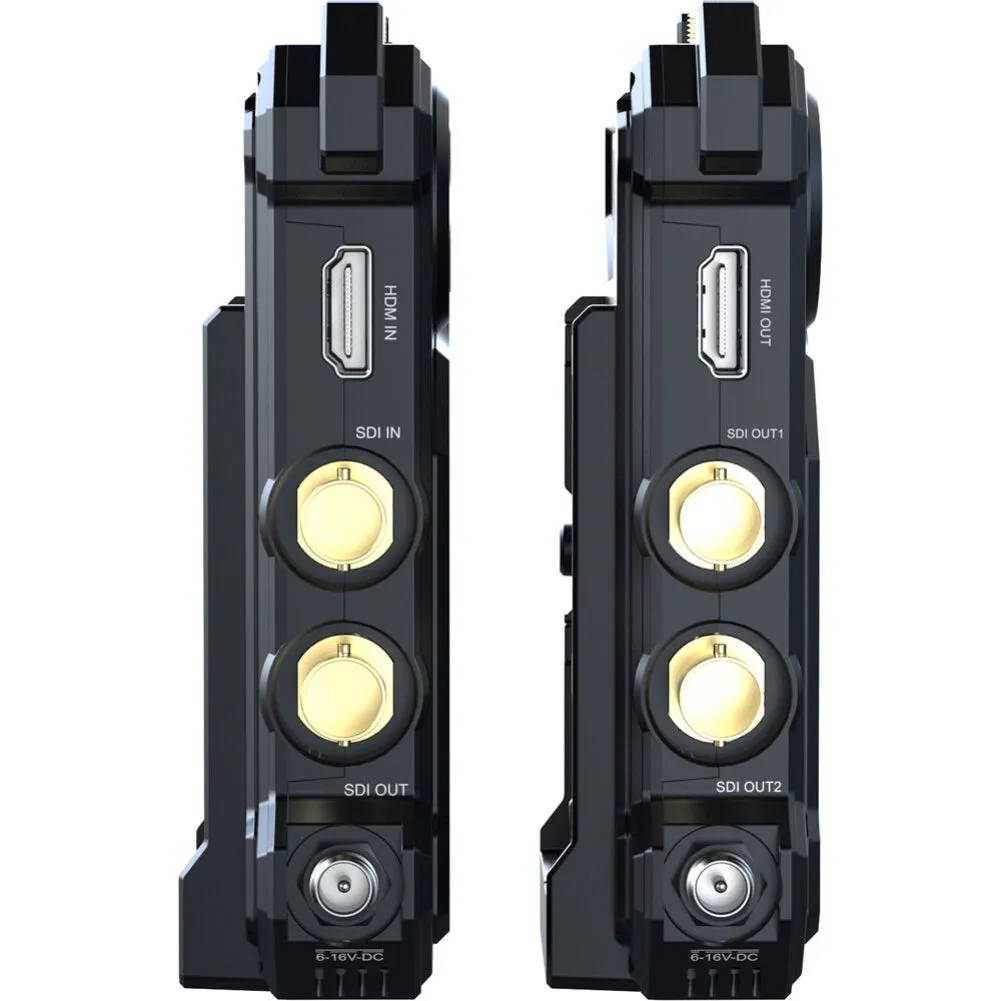

| Transmitter Video Connectors | 1 x HDMI Input |
| 1 x SDI Input | |
| 1 x SDI Loop out | |
| Receiver Video Connectors | 1 x HDMI Output |
| 2 x SDI Output | |
| Transmitter Other I/O | 1 x USB Type-C |
| 1 x DC Power Input | |
| Receiver Other I/O | 1 x USB Type-C |
| 1 x DC Power Input | |
| Embedded Audio | HDMI |
|
Video Format
|
HDMI: |
| 480p60 | |
| 576p50 | |
| 720p50/59.94/60 | |
| 1080i50/59.94/60 | |
| 1080p23.98/24/25/29.9/30 | |
| 1080p50/59.94/60 | |
|
Display Transmitter Panel Type
|
OLED |
| Display Receiver Panel Type | OLED |
|
Transmitter Battery Support
|
1 x Sony L-Series / NP-F Type |
| Receiver Battery Support | 1 x Sony L-Series / NP-F Type |
| Transmitter Power Connector | Barrel (6 to 12V DC) Input |
| Receiver Power Connector | Barrel (6 to 12V DC) Input |
| Transmitter Power Consumption | Device: (<9 W) |
| Receiver Power Consumption | Device: (<9 W) |
|
Transmitter Mounting
|
1 x 1/4"-20 Female |
| Receiver Mounting | 1 x 1/4"-20 Female |
| Materials | Metal |
| Transmitter Dimensions | 11.5 x 7 x 3.2cm(The Battery Plate Exclude) |
| Receiver Dimensions | 11.5 x 7 x 3.2cm(The Battery Plate Exclude) |
| Transmitter Weight | 214g |
| Receiver Weight | 210g |
What's Included
1 x Hollyland Cosmo C1 SDI/HDMI Wireless Transmission System 1000ft
1 x Cosmo C1 Transmitter
1 x Cosmo C1 Receiver
4 x Antenna
2 x Mushroom Antenna
1 x Cold Shoe
1 x Peasecod Pan-tilt with Cold Shoe
1 x Type-C Converter
1 x Power Adapter
