* projector not included

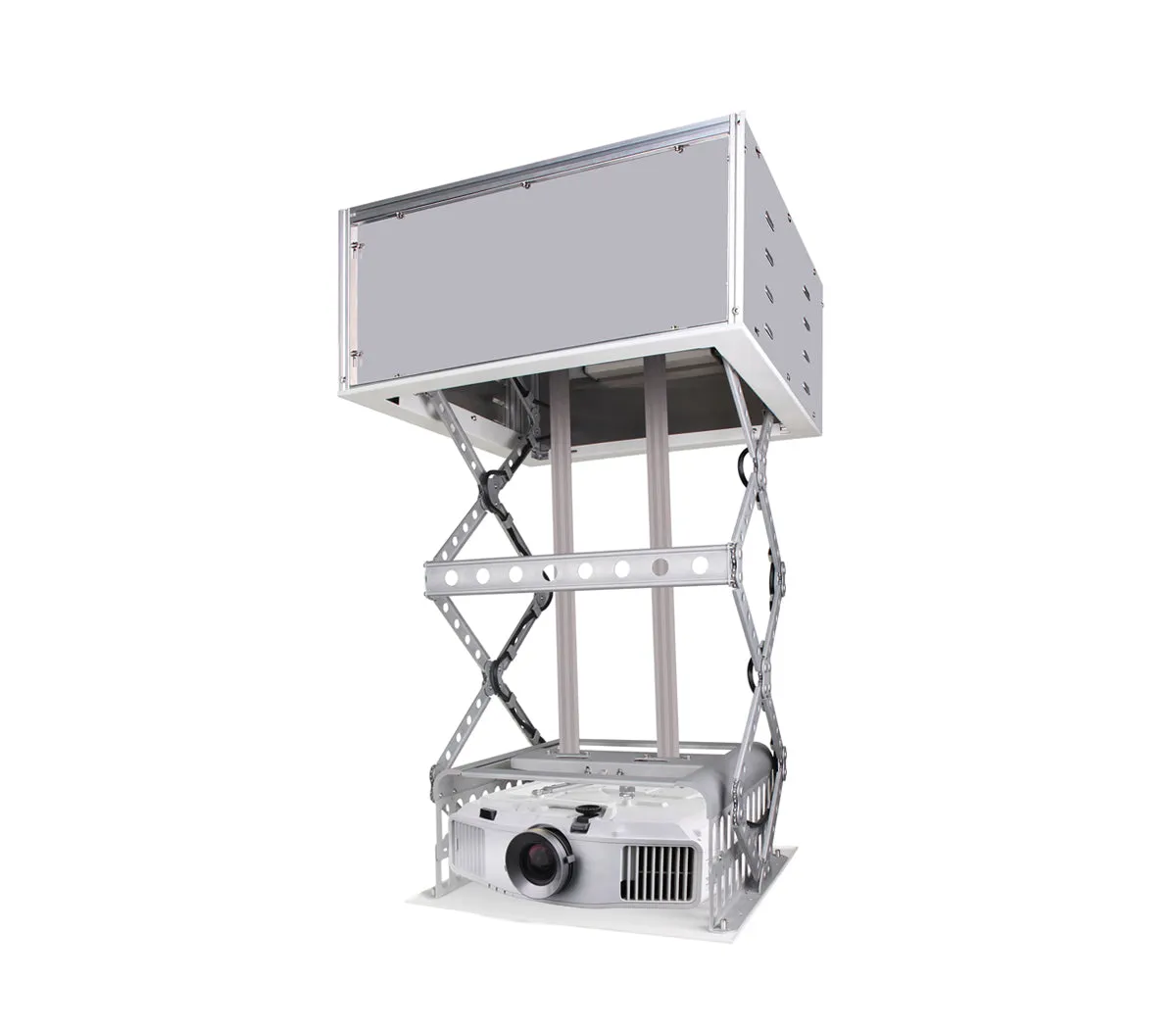

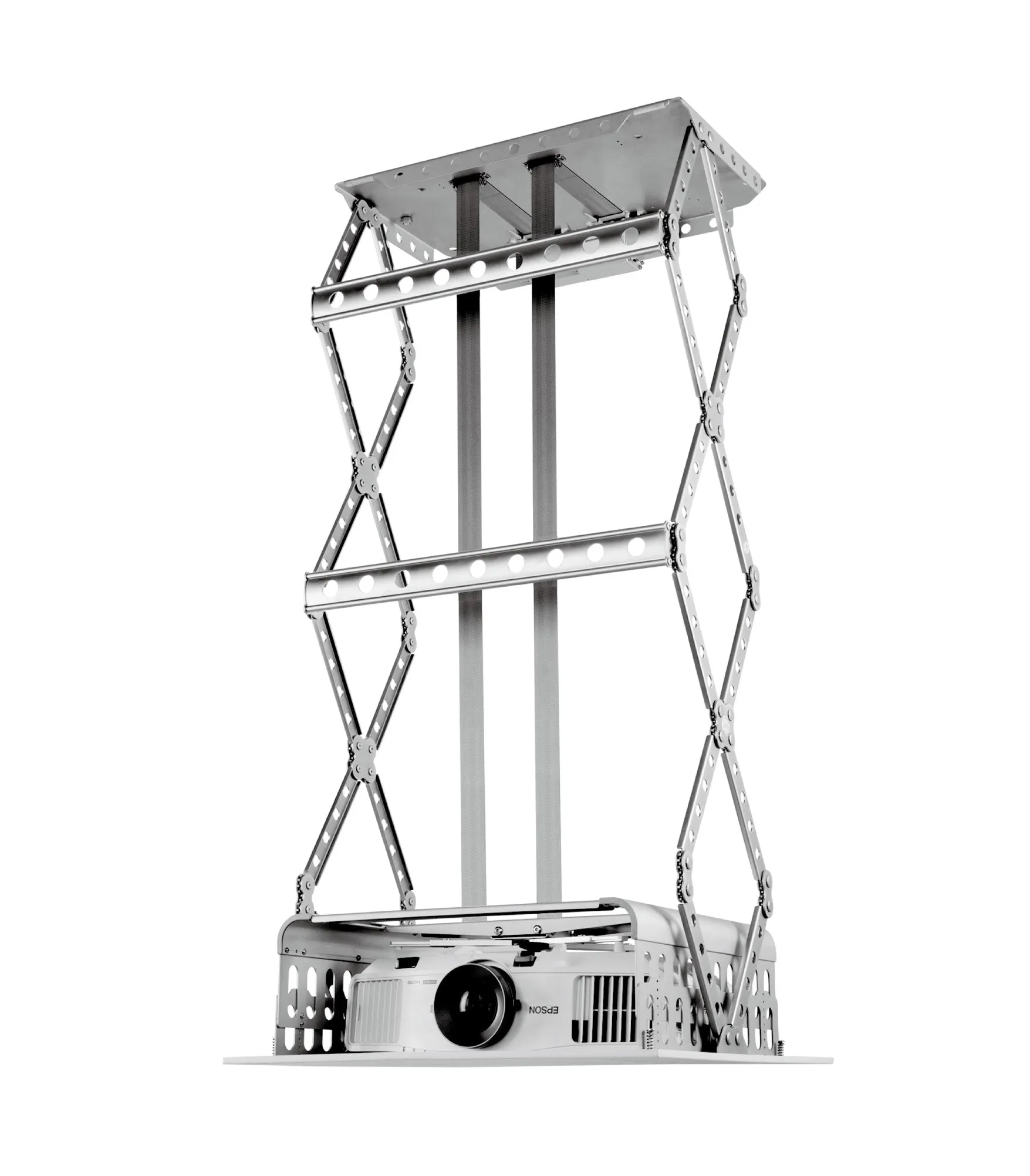

Slim Motorized Projector Lift

X-arm projector ultra-thin electric elevator, for the new generation of projector electric elevator products, in line with international standards.Special use of small and medium-sized projectors and installation space of small environment design, such as: meeting room, training room, multimedia classroom and other places

The elevator USES x-type composite mechanical arm to lift and lower, stable operation, electronic travel positioning, one-key setting, simple operation. The hidden installation design can be integrated with the ceiling after being closed.Long-term service life design, easy maintenance and overload protection design to prevent extreme overload, effectively avoid the danger caused by extreme overload

* the size of the projector is the recommended size for reference only. The actual size shall prevail.

Specifications

• Product Dimensions (mm): 600×600×215
• Net Weight (kg): 20
• Max Projector Dimensions (With Wire And Lens)(mm): 480x180x480
• Max Load (kg): 12
• Power (w): 50
• Max Travel (mm): 1000
• Precision (mm): ＜2mm
• Noice (dB): ≤55dB
• Voltage (v): 220V/110V
• jib attachment(mm): 360x220
• Decorative Plate Dimensions (mm): 600x600
• Ceiling Opening Dimensions (mm): 590x590
• Angle Adjustments Up/Down/Left/Right: 1° / 8° / 4° / 4°
• Dry Contact (Y/N): Yes

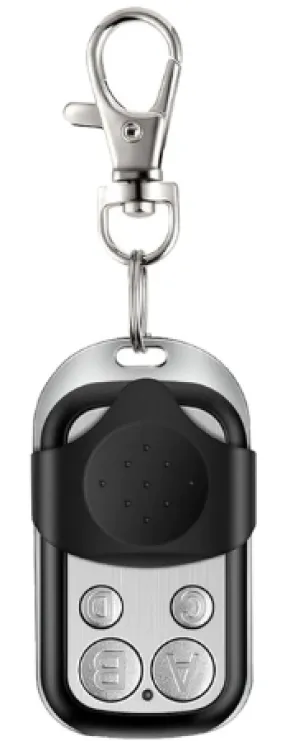

• Wireless Control (Y/N): Yes
