Product Details
＋

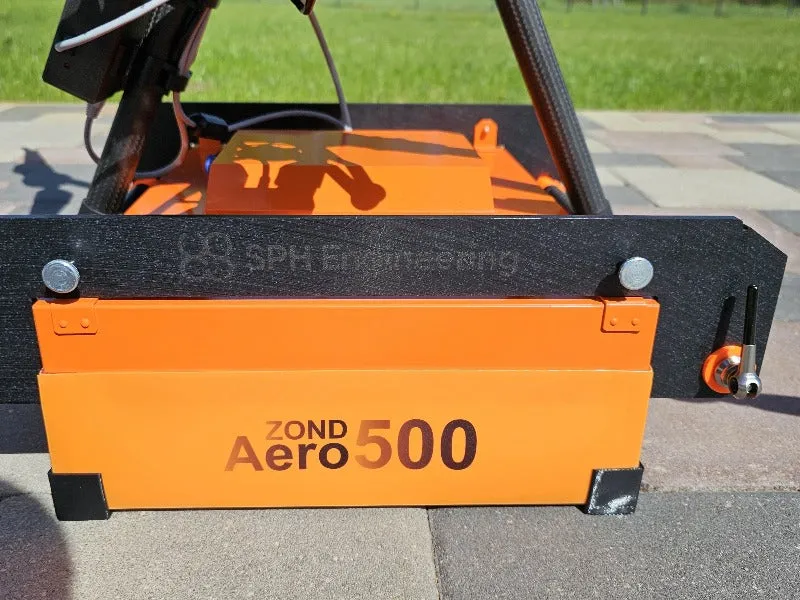

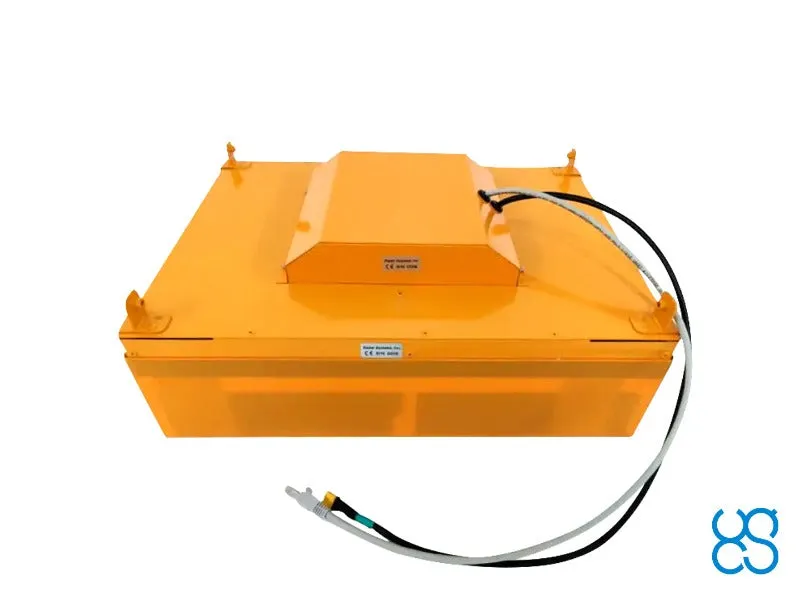

Lightweight GPR system, suitable for medium-sized drones like DJI M300 RTK.

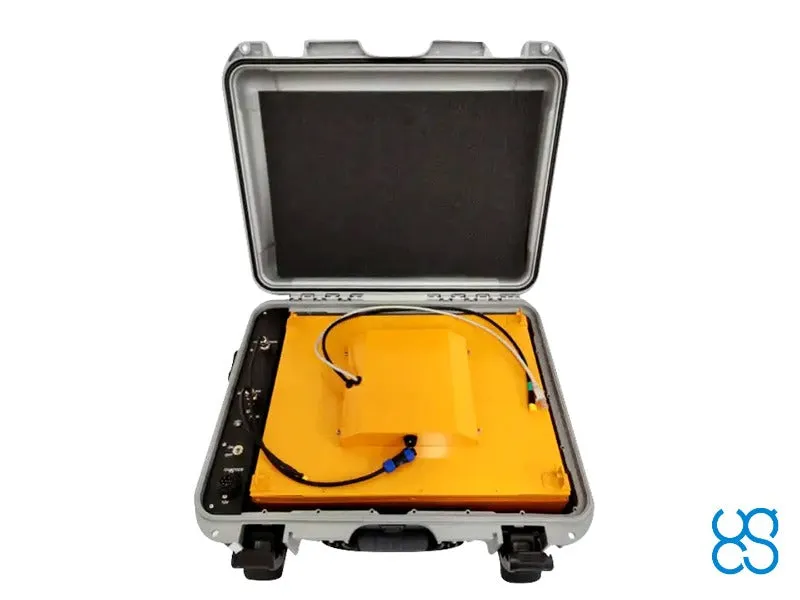

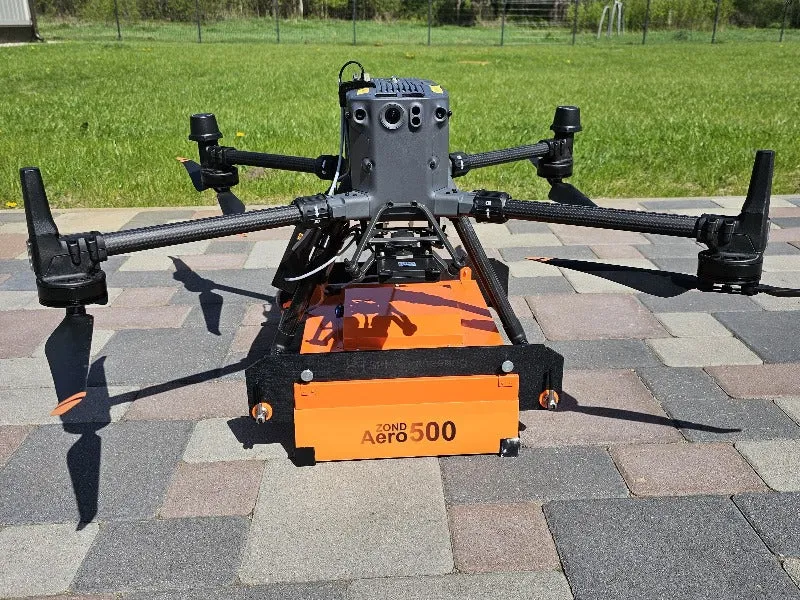

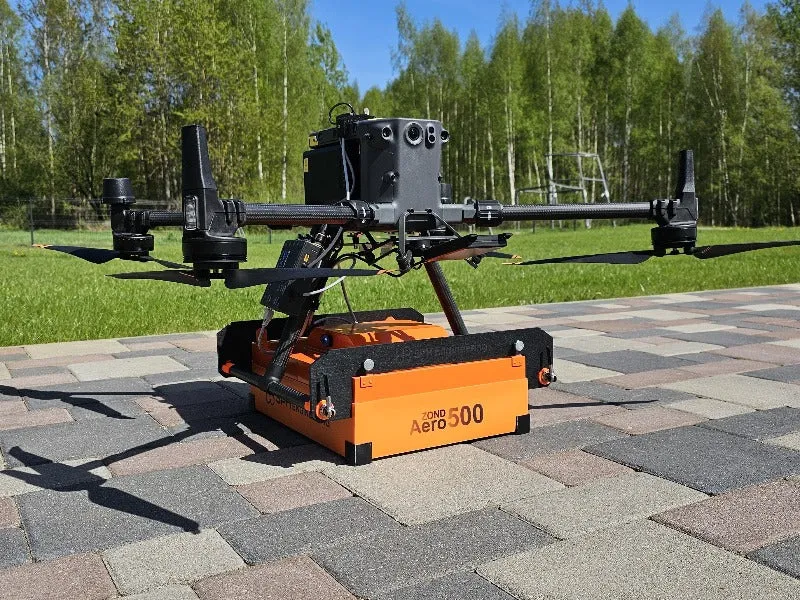

Includes a transportation box and mountings for the DJI M300/M350 RTK drone. Mounts for other types of drones are available upon request.
HS Code: 90158020 (meteorological, hydrological, geophysical instrument)
FCC Code: 2AUQQ-ZONDAERO500
IC Code: 25515-ZONDAERO500
Please note that additional components and software must be ordered to use this GPR with drones. It is recommended to order a .
| Type | Single-channel with shielded antenna |
| Center frequency | 500 MHz |
| Operating bandwidth | 200-900 MHz (-12 dB) |
| Samples | 512 per trace |
| Sample rate | 25600 samples/second |
| Scan rate | 50 scans/s |
| Sample output | 16-bit digital raw data |
| Time range | Selectable time range 50, 100, 200 or 300ns |
| Depth | Up to 4 meters in average normal soil with 100ns time range |
| Data format | Standard Geophysical SEGY Data Format (.sgy) with traces geotagging |
| DOCUMENTATION & DATA SETS | |
| Data Sheet | |
| User Manual | |
| Data Samples | |
| ENVIRONMENTAL | |
| Temperature | -20°C to 60°C internal temperature |
| Humidity | 96% non-condensing |
| Ingress protection | IP68 in a protective box (used for transportation and for ground surveys) IP52 in airborne variant |
| MECHANICAL | |
| Size (L x W x H) |
|
| Weight |
|
| BATTERY | |
| Airborne variant | Drone main battery is used to provide power to the GPR using standard power socket of the drone intended for payload |
| Ground surveys | The battery is integrated into a protective box, operating time up to 12 hours 99 W/h Li-Ion |
| WHAT’S IN THE KIT | |
| |
