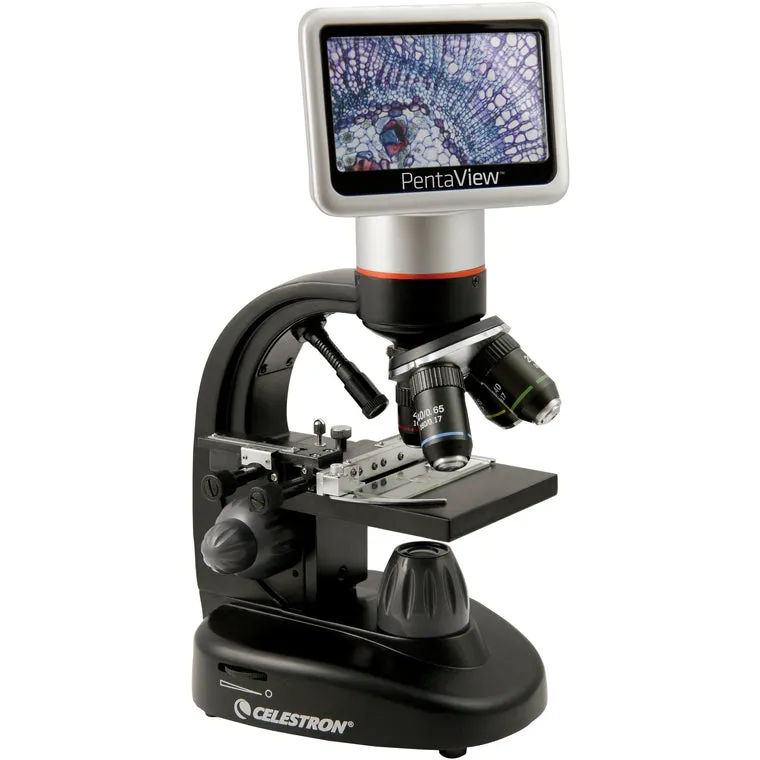

The Celestron PentaView LCD Digital Microscope offers a blend of advanced features and ease of use, ideal for professionals and serious hobbyists alike. This microscope boasts a wide magnification range from 40x to 600x, which can be expanded up to 2400x with its digital zoom capability.

At the heart of the PentaView is a 4.3" LCD touchscreen, providing a clear and interactive way to view specimens. This is coupled with a 5MP CMOS built-in digital camera, perfect for capturing high-resolution images and videos of your samples.

The microscope comes equipped with five fully achromatic objective lenses (4x, 10x, 20x, 40x, 60x), ensuring sharp and color-accurate imaging. It features both top and bottom adjustable LED illumination for enhanced viewing of various specimens.

One of the unique features of the PentaView is its 180° rotatable LCD screen, making it easy to share observations with others. For larger groups or classroom settings, the microscope includes an AV/TV output with a cable for connection to televisions or projectors.

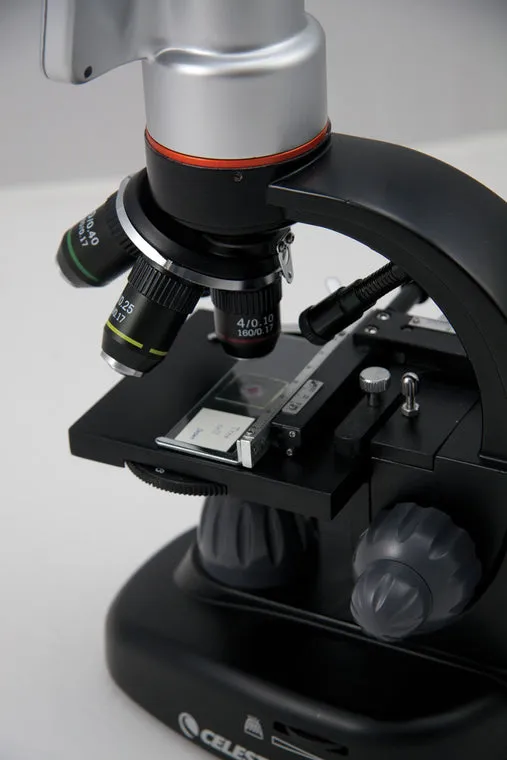

The fully mechanical stage provides precise slide manipulation, while the coarse and fine focus knobs aid in obtaining the perfect focus. A filter wheel/diaphragm further enhances the viewing experience.

For added versatility, the microscope includes an SD card slot with a 4GB SD card (supports up to 32GB) for storage, and an optional battery mode for use without direct power. It also comes with a universal AC adapter with multiple plugs for international use.

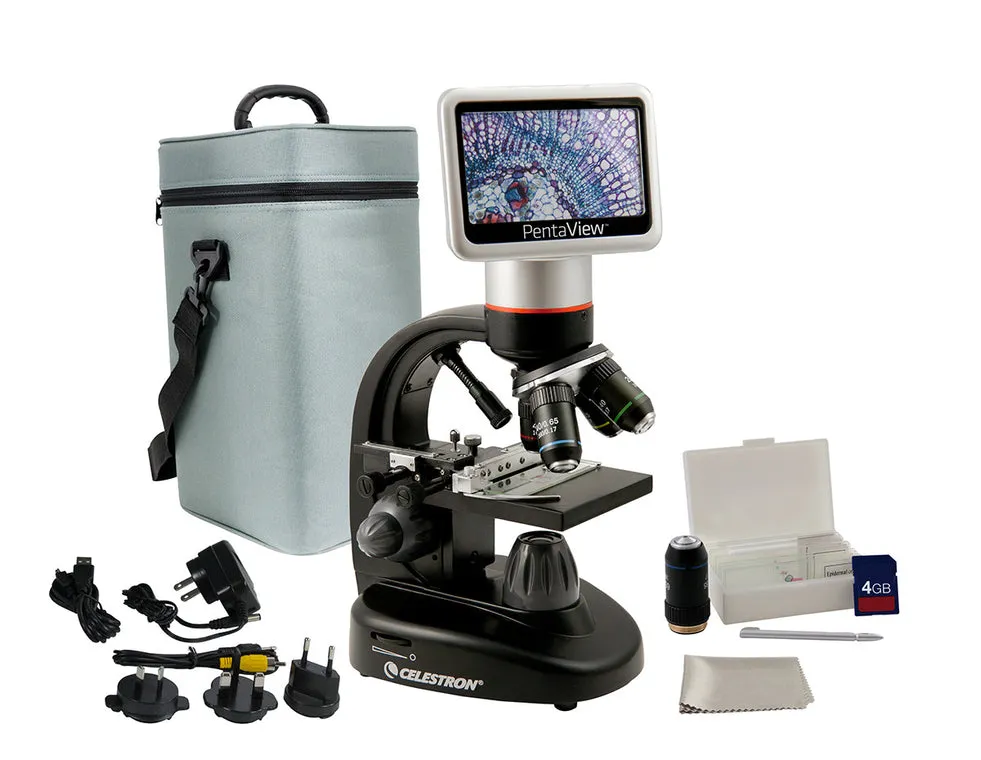

Included accessories are ten prepared slides, a hard carrying case, a dust cover, a touch pen, a USB cable, and an AV cable, making the Celestron PentaView LCD Digital Microscope a comprehensive package for lab work, educational purposes, and scientific research.

Specifications

GENERAL
Type of Microscope: LCD Desktop
Head: 180° rotatable head w/4.3" TFT LCD Screen
Nosepiece: Quad with click stop
Objective(s) Type: (5) Achromatic objectives on turret
Objective(s) Standard: DIN 35 RMS
Objective(s) Magnification: 4x, 10x, 20x, 40x, 60x (included-not connected)
Objective(s) Thread: WJ 4/5" x 1/36"
Focus Type(s): Course Focus | Fine Focus
Focus Travel (per rotation): 0.2mm to 35.3mm (.007" to 1.39") (est.)
Magnification Range: 40x, 100x, 200x, 400x, 600x | Up to 2400x with digtial zoom
Illumination Type: LEDs
Illumination Position(s): TBD
Illumination Adjustability Mechanism: Adjustable wheels at base
Power Source: Universal 100 to 240V, 50/60 hz multi-country plug | (4) AA (optional)
Battery Options: Yes (4AA)
Stage: Fully mechanical with metal clips, 88mm x 88mm (3.5" x 3.5") | With Filter wheel | Red, blue, green | 1mm, 3mm, 6mm apertures
Condenser Type: Aplantic
Condenser N.A.: N.A. 65
Stage Diaphragm: Multiple on wheel
Eyepiece Type: CMOS Sensor in lieu of eyepiece
Sensor Size: 5MP | 1/2.5"
Pixel Size: 2.2 μm
Screen type: High definition touch, 480 x 272 pixels resolution, 109mm (4.3") with 4x digital zoom, rotates 180°
Screen Size: 4.3"
Memory Type: SD Card
Memory Size: 8G SD included | Supports up to 32G
Port(s) In: AC Plug (power) | SD Card slot (32Gmax)
Port(s) Out: Video/ TV out | USB 2.0
AC Adapter: 5-6V DC, 200-1000mA tip positive electrical input. Jack should be 5.5mm (.21") OD, 2.1mm (.08") ID and 12.5mm (.49") long
Still image capture resolution: 1920x1080 | 2048x1152 | 2560x1440 | 3072x1728 | 3648x2048 | 3072x1728
Video resolution: VGA (640 x 480)
Shutter trigger position: On LCD Screen
Software: Internal Firmware
Microscope Dimensions: 78mm x 140mm x 330mm (7" x 5.5" x 13")
Microscope Weight: 67 oz (1.9 kg)
Included Items: 8GB SD Card | USB 2.0 Cable (data transfer) | 10 Prepared Slides | 4 plug, multi-country AC adapter | Dust Cover | Carrying Case
