Specifications:

• Product Number: 90MB1CJ0-M1EAY0


Processor

• Processor manufacturer: Intel
• Processor socket: LGA 1700
• Supported processor sockets: LGA 1700

Memory

• Supported memory types: DDR5-SDRAM
• Number of memory slots: 4
• Memory slots type: DIMM
• Memory channels: Dual-channel
• Supported memory clock speeds:
• 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200
• Supported memory clock speed (max): 7200 MHz
• Maximum internal memory: 128 GB
• Unbuffered memory: Yes

Storage controllers

• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2, SATA III
• RAID support: Yes
• RAID levels:
• 0
• 1
• 10
• 5

Graphics

• Parallel processing technology support: Not supported

Internal I/O

• USB 2.0 connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
• USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
• Number of SATA III connectors: 4
• S/PDIF out connector: Yes
• Front panel audio connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• Number of chassis fan connectors: 3
• Peripheral (Molex) power connectors (4-pin): 1
• EPS power connector (8-pin): Yes
• Number of COM connectors: 1
• TPM connector: Yes
• Thunderbolt headers: 1
• 12V power connector: Yes
• RGB LED pin header: Yes

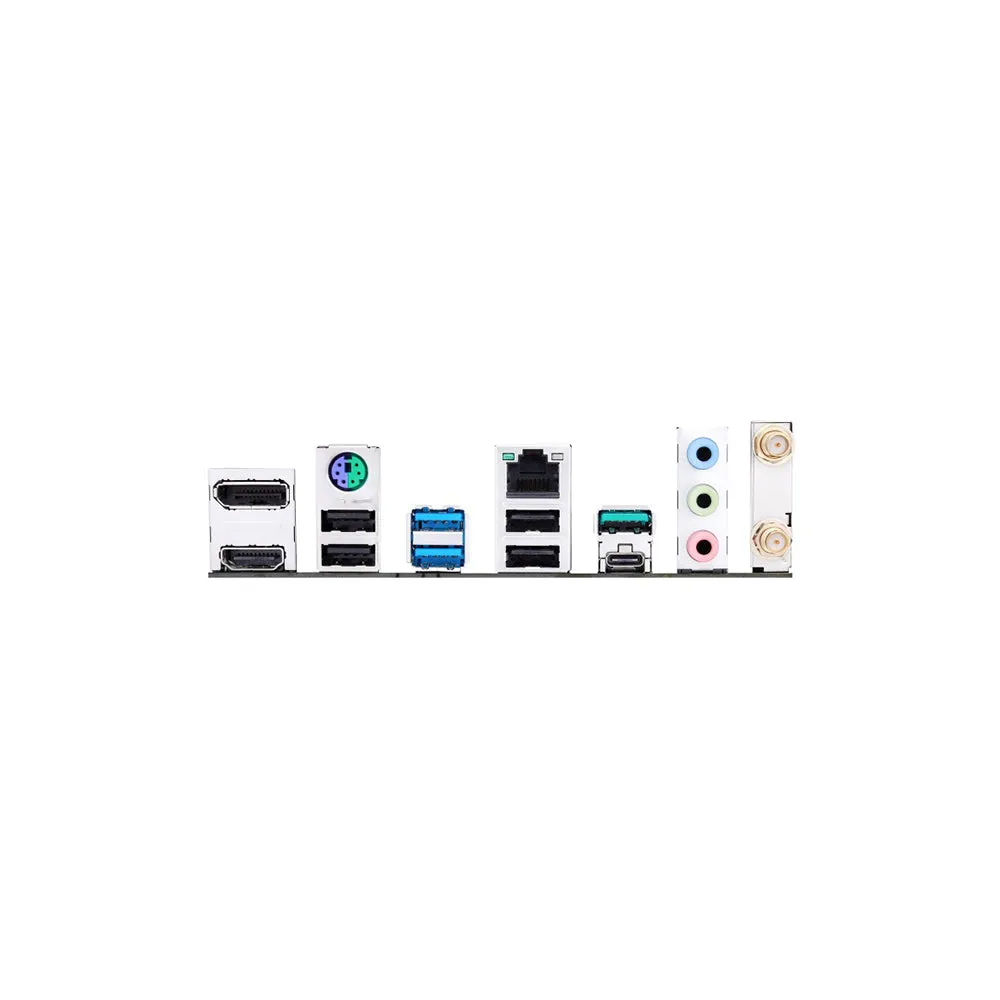

Rear panel I/O ports

• USB 2.0 ports quantity: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
• USB 3.2 Gen 2x2 Type-C ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• PS/2 ports quantity: 1
• HDMI ports quantity: 1
• DisplayPorts quantity: 1
• Headphone outputs: 1
• Line-in: Yes
• Microphone in: Yes
• WiFi-AP antenna jack: 1

Network

• Ethernet LAN: Yes
• Ethernet interface type: 2.5 Gigabit Ethernet
• Wi-Fi: Yes
• Top Wi-Fi standard Wi-Fi: 6 (802.11ax)
• Wi-Fi standards:
• 802.11a
• 802.11b
• 802.11g
• Wi-Fi 4 (802.11n)
• Wi-Fi 5 (802.11ac)
• Wi-Fi 6 (802.11ax)
• Bluetooth: Yes
• Bluetooth version: 5.2

Features

• Motherboard chipset: Intel Z790
• Audio output channels: 7.1 channels
• Motherboard form factor: ATX
• Motherboard chipset family: Intel
• Power source type: ATX
• Windows operating systems supported:
• Windows 10 x64
• Windows 11

Expansion slots

• PCI Express x1 (Gen 3.x) slots: 1
• PCI Express x16 (Gen 4.x) slots: 3
• PCI Express x16 (Gen 5.x) slots: 1
• Number of M.2 (M) slots: 3

BIOS

• BIOS type: UEFI AMI
• Clear CMOS button: Yes

Weight & dimensions

• Width: 305 mm
• Depth: 234 mm
• Height: 40 mm

Packaging content

• Cables included: SATA
• Drivers included: Yes

Other features

• Weight: 1.03 kg
